Tracked mower hydraulic application brochure

Hydraulic circuits and valve assemblies for the mowing head, independent left and right travel, auxiliary functions and cooling, mapped to the machine schematic.

The application brochure and original drawings are in Chinese.

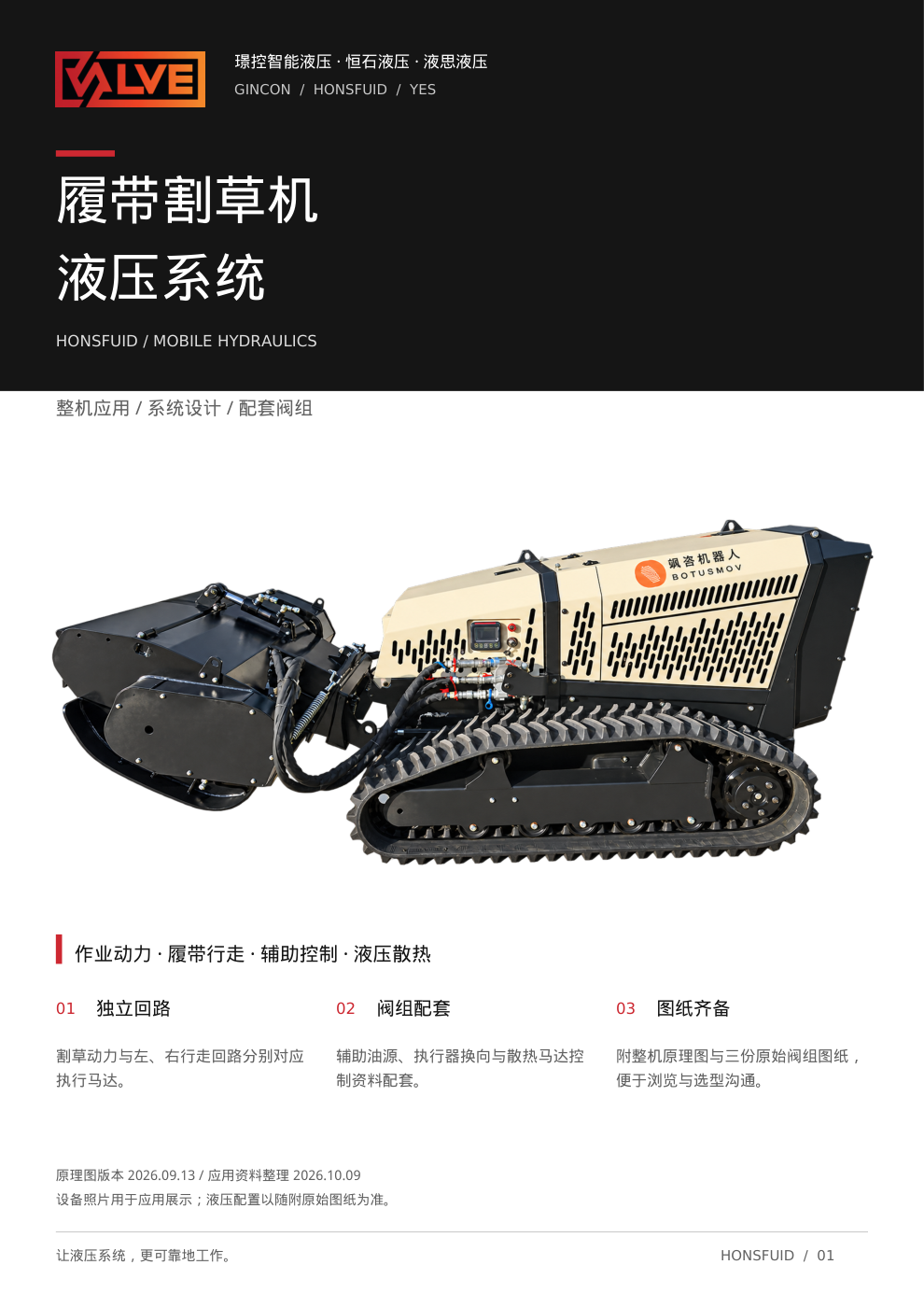

01 / Machine and application

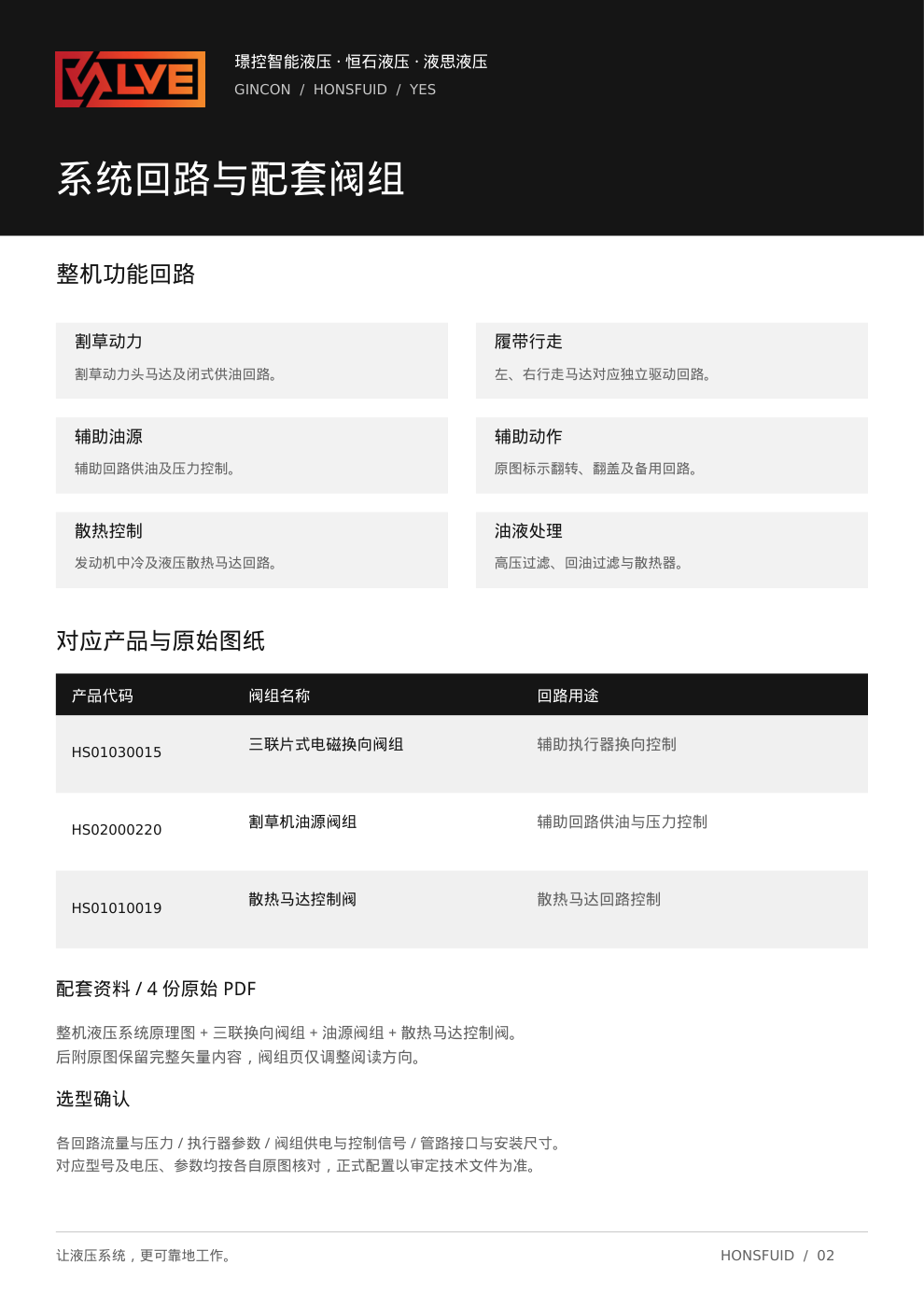

02 / System and valve configuration

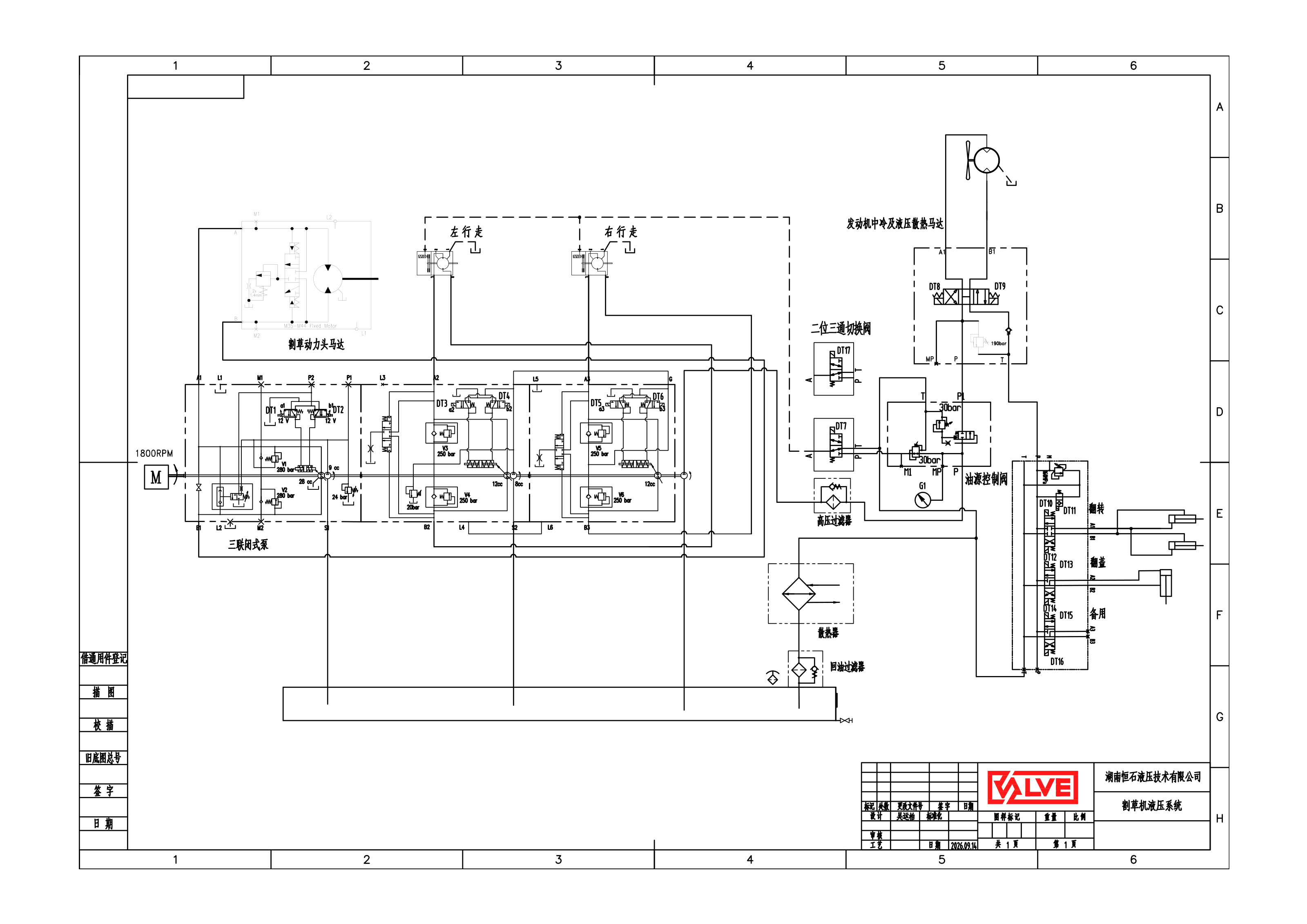

03 / Machine hydraulic schematic

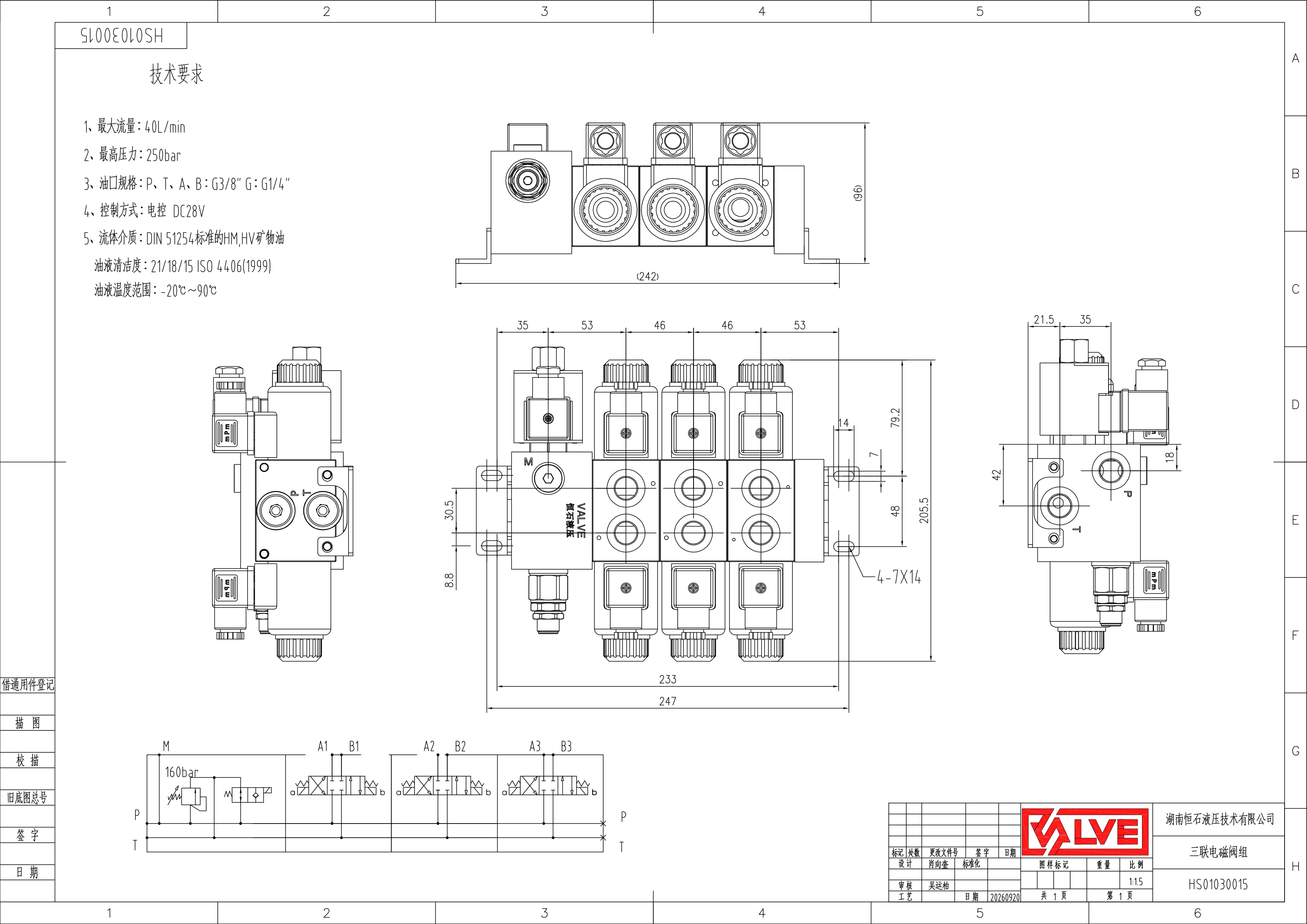

04 / HS01030015 · three-section solenoid valve assembly

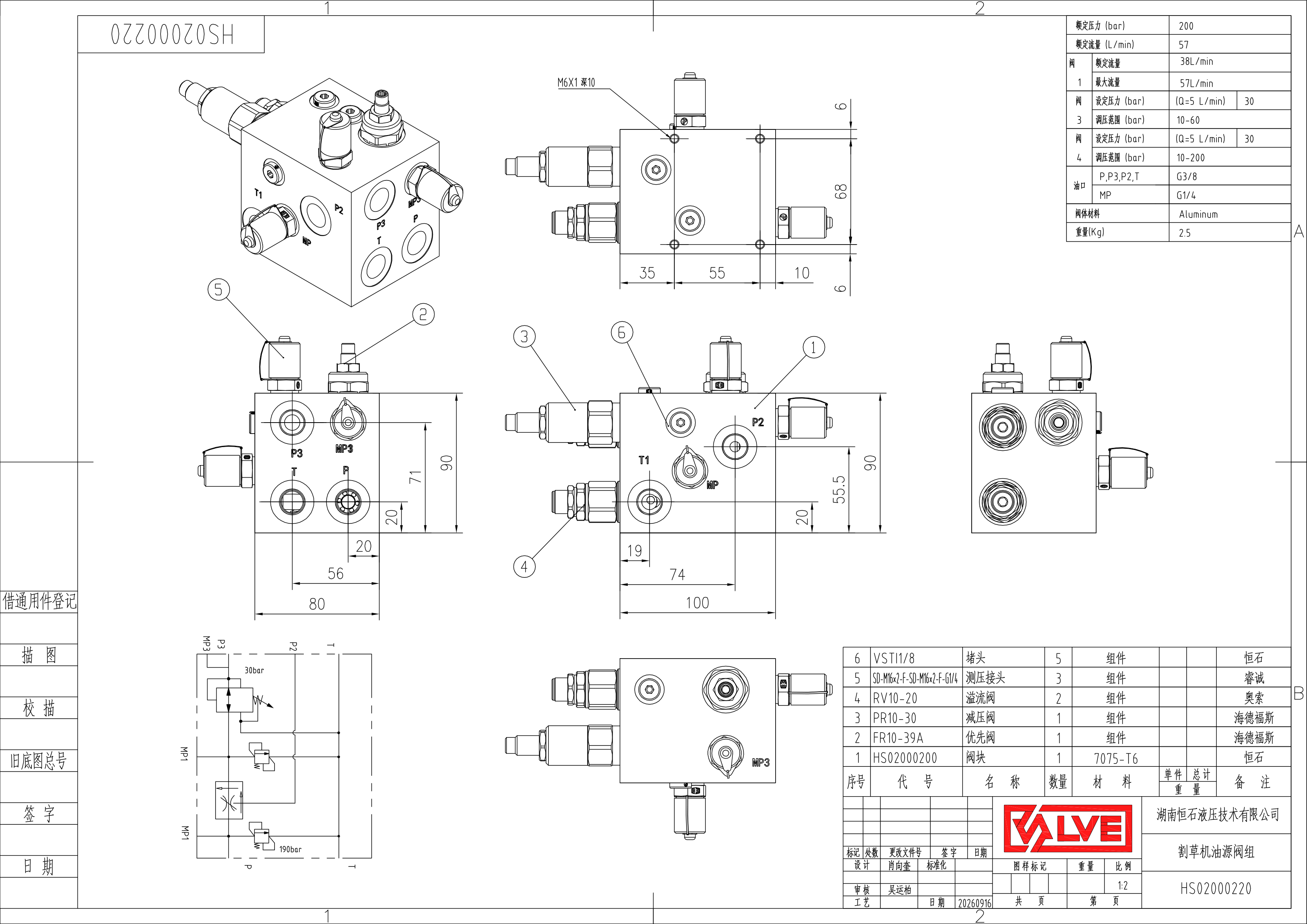

05 / HS02000220 · mower oil supply manifold

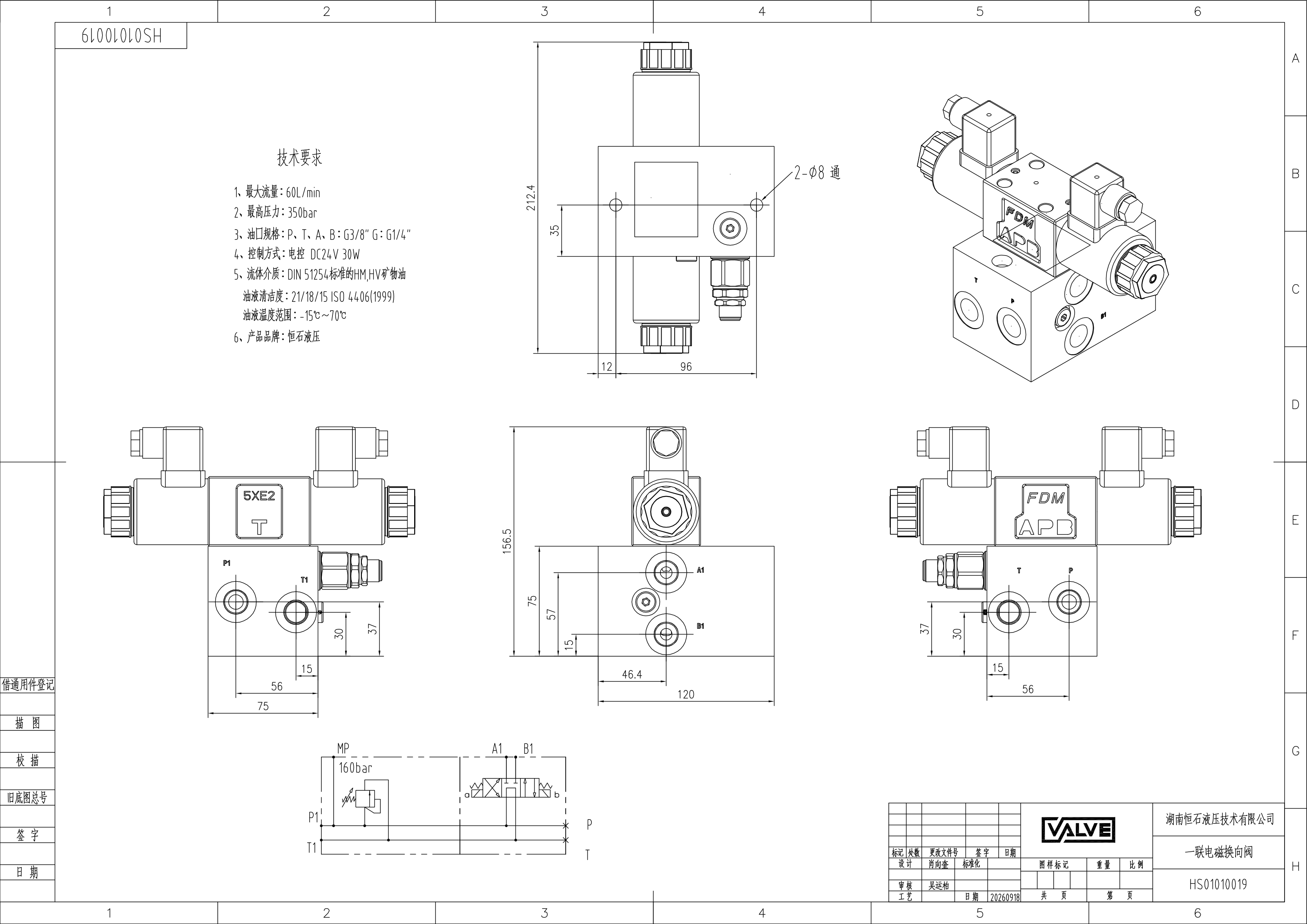

06 / HS01010019 · cooling motor control valve
